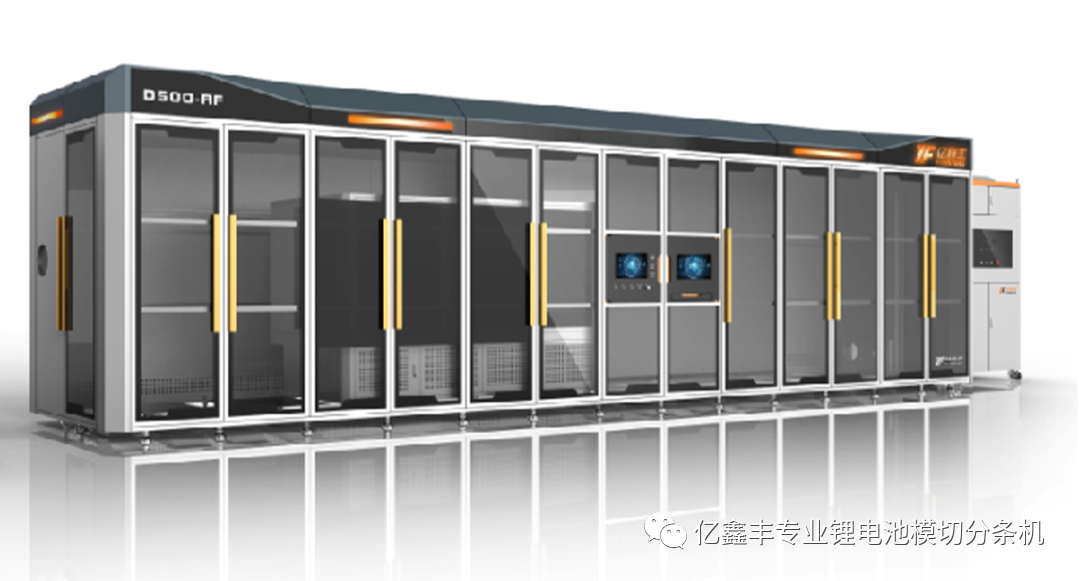

一種高效率激光切極片、電芯卷繞設備。
功能特點
Functional features:
伺服閉環張力控制系統，實時測量監控功能，張力波動≤±5%，
EPC糾偏、蛇形糾偏相互作用，保證對齊度±0.3mm;
飛切系統控制，POS能量跟隨算法，極片抖動小，變角速（恒線速）高速卷繞，最高設計線速3000mm/s，穩定生產速度120m/min;
Servo closed-loop tension control system, real-time measurement and monitoring function, tension fluctuation ≤±5%,
EPC correction and snake correction interact to ensure alignment ±0.3mm;
Fly cutting system control, POS energy following algorithm, small pole piece jitter, variable angular speed (constant linear speed) high speed winding, maximum design linear speed 3000mm/s, stable production speed 120m/min;
機器型號Machine type | 最大料寬Material width | 速度speed | 成型精度 Molding accuracy | 熱影響區Heat-affected zone |
R50D-EV | 150mm | ≥17ppm | ±0.2mm | ≤100μm |
